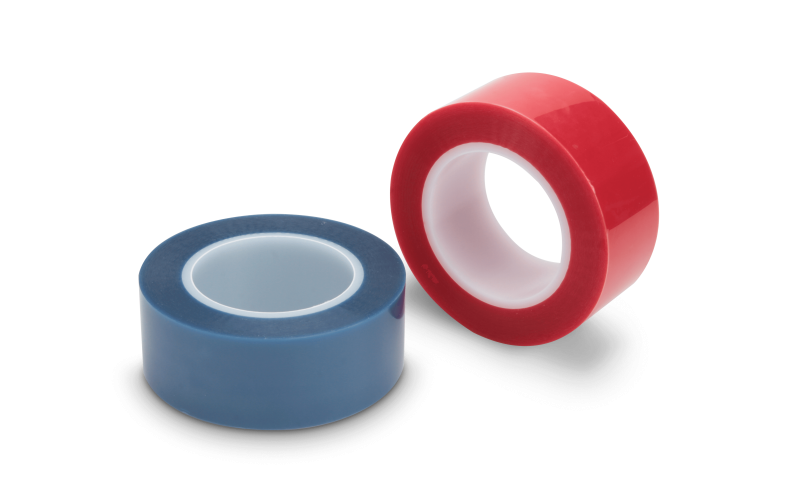

Tape For MLCC

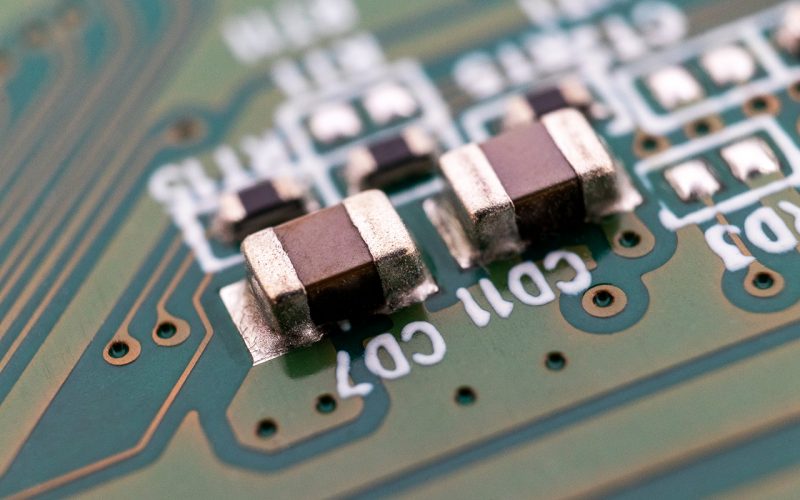

 Silicone tape for shielding and protection of multilayer ceramic capacitors (MLCC) in the silver dipping process
 Made of PET film coated with silicone and there are characterized by high temperature resistance ,adhesive non-transfer and no glue residue
 Can withstand high temperature up to 200℃ and can be removed without leaving any adhesive residue.

 For MLCC process, special glue is attached to the jig plate and easy to be removed by hand

Item Model

Surface Material

Thickness

(mm)

Color

180° Peel Adhesion(kg/inch)

Temperature Range(°C)

SMTR257X-S1

PET

0.050

red

0.4~0.65

 -5~150

SMTG257U

0.050

green

0.65~1

SMTG25

0.070

green

0.8↑

SMTBL25P

0.050

blue

0.4~0.65

SMTBL25

0.050

blue

0.6↑

SMTP25

0.050

purple

0.65~1.0

SMTR38

0.062

red

0.6~1.0
